760871142
Manufacturer:
Wurth Electronics
Mfr.Part #:
760871142
Datasheet:
Description:

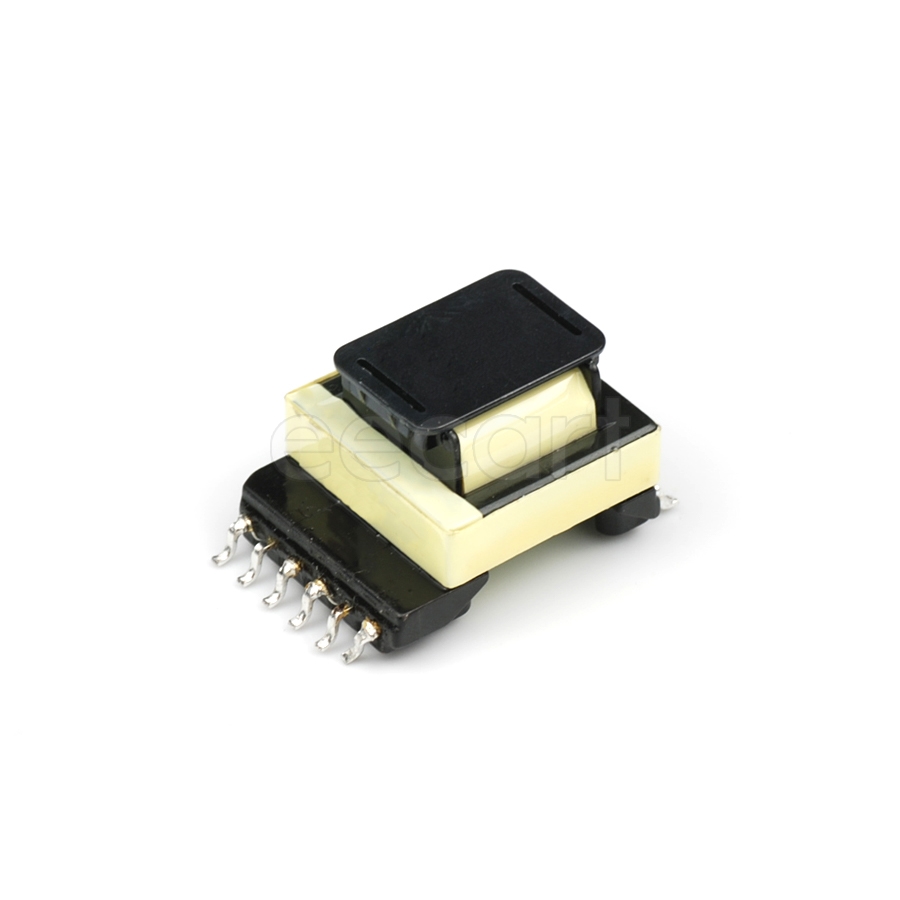

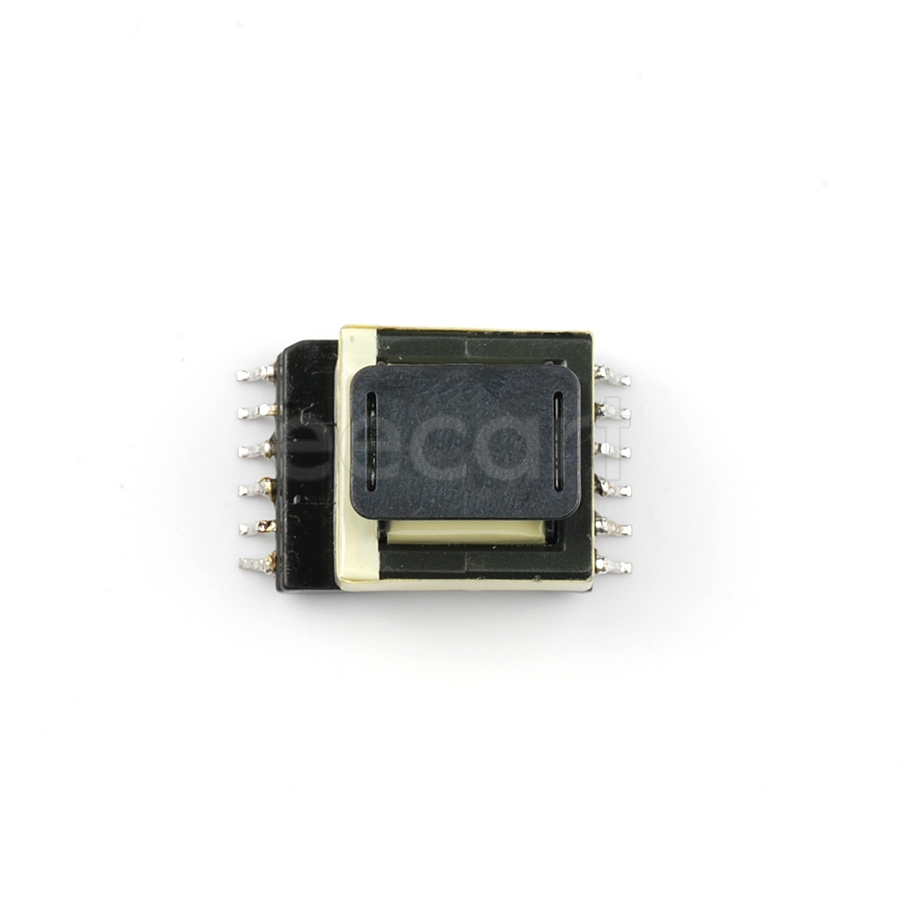

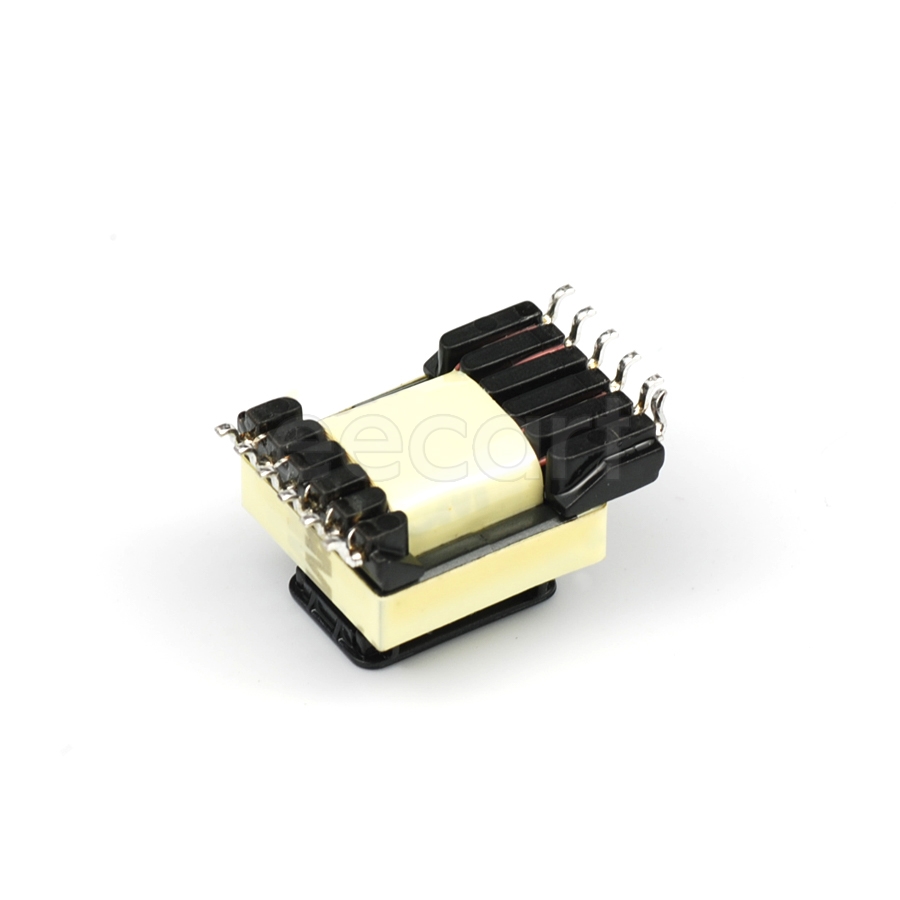

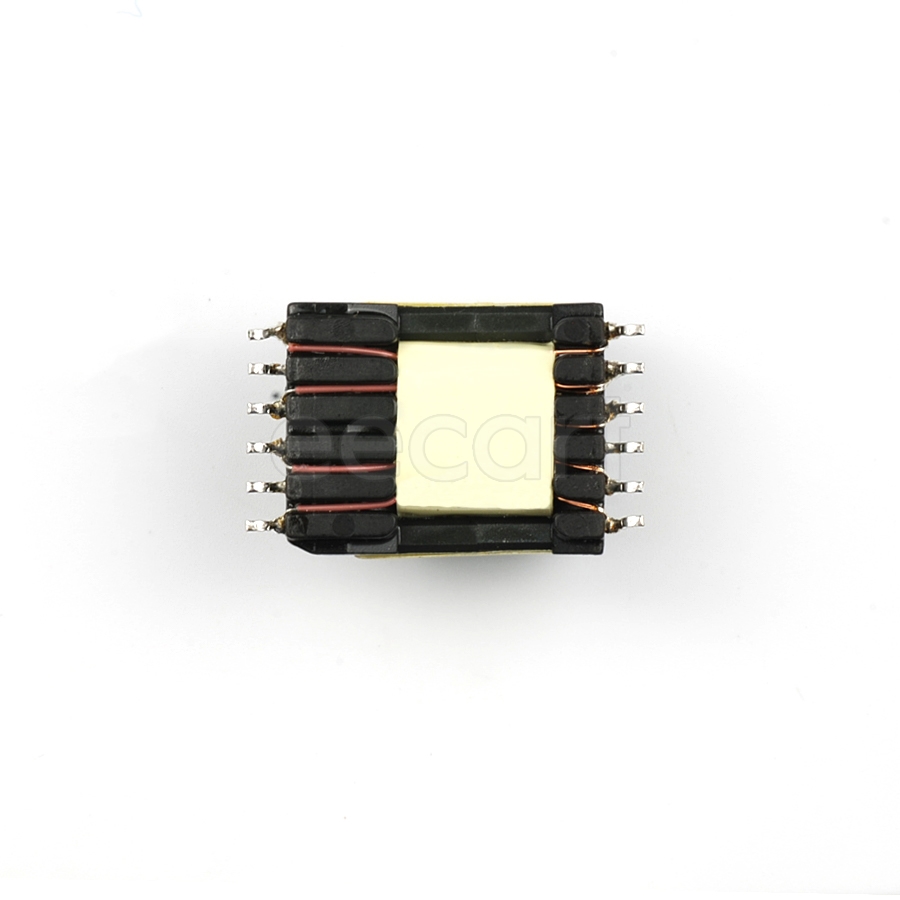

Transformers SMD/SMT 150 kHz 1.25 mH
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 14 mm |
| Length | 25.81 mm |
| Width | 16.6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 3 Ω |
| Height | 13.5 mm |
| Packaging | Reel |
| RoHS | Compliant |
| Frequency | 150 kHz |
| Current Rating | 280 mA |
| DC Resistance (DCR) | 3 Ω |
| Output Current | 280 mA |
| Shielding | Unshielded |
| Inductance | 1.25 mH |
| Turns Ratio | 140:27:27:16 |
Stock: 125
Distributors
pcbx
pcbxUnit Price$6.17088
Ext.Price$6.17088
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.17088 | $6.17088 |
| 10 | $6.07000 | $60.70000 |
| 25 | $6.06401 | $151.60025 |
| 50 | $5.63227 | $281.61350 |
| 100 | $5.20054 | $520.05400 |
| 300 | $4.50271 | $1350.81300 |
| 500 | $3.89848 | $1949.24000 |
